Balkonkraftwerk Apartment Balcony Solar PV Mount Panel Solar Energy Balcony Wall Pv Mounting System
Drill-free installation: Some brackets use a special connection method, using stainless steel bolts to connect to the railing, eliminating the need to drill holes in the balcony railing. This makes installation convenient and does not damage the original structure of the balcony.
Multiple adjustable angles: Some brackets can adjust the angle of the solar panel according to actual needs to obtain the best lighting conditions and improve power generation efficiency. Through the unique telescopic tube support leg design, the panel tilt angle can reach up to 30° and can be adjusted at any time.
High strength and corrosion resistance: Most solar balcony brackets are made of high-quality materials such as aluminum alloy 6005-T5 and stainless steel 304. These materials have the characteristics of high strength and corrosion resistance and can withstand harsh weather conditions, including heavy snow loads and strong winds.
- Stonergy
- China
- ≤31
- Information

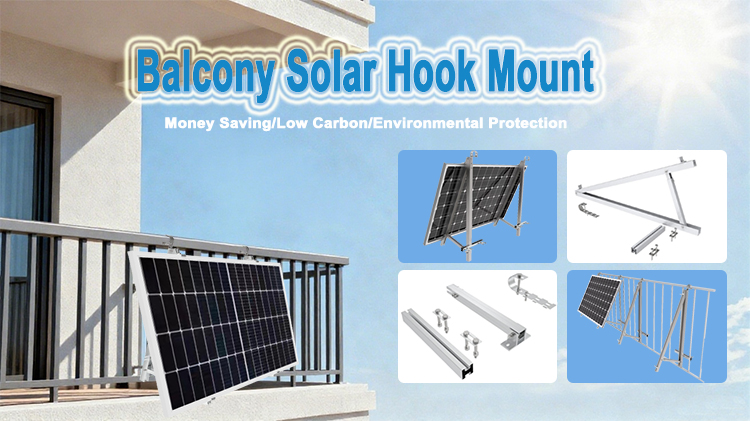

Solar Balcony Bracket Product Introduction
Solar balcony brackets are solar power generation auxiliary devices designed specifically for balcony scenarios. Through modular structure and flexible fixing methods, they stably support solar photovoltaic panels on balcony railings, walls, or the ground, efficiently utilizing idle space to achieve photovoltaic power generation. They are one of the core devices for urban residents to access green energy and are widely compatible with distributed photovoltaic systems in residential homes and small commercial buildings.
The core function of a solar balcony bracket is to provide stable support and an angle adjustment base for solar photovoltaic panels. By precisely adapting to the characteristics of the balcony space, it maximizes the efficiency of sunlight reception and ultimately helps the photovoltaic system achieve efficient power generation.
Its working principle is clear and simple: First, select a suitable hook assembly to fix the upper bracket according to the cross-sectional shape of the balcony railing (such as circular or rectangular). Then, complete the bottom positioning through the horizontal guide rail and support leg assembly of the lower bracket, connect the top of the photovoltaic panel to the bracket of the upper bracket, and fix the bottom to the telescopic column bracket. By adjusting the insertion length of the inner and outer columns and coordinating with the rotation angle adjustment of the bracket, the photovoltaic panel can achieve the optimal tilt angle for sunlight. Finally, tighten the fixing bolts to complete the installation and ensure stable operation of the system under various weather conditions.
